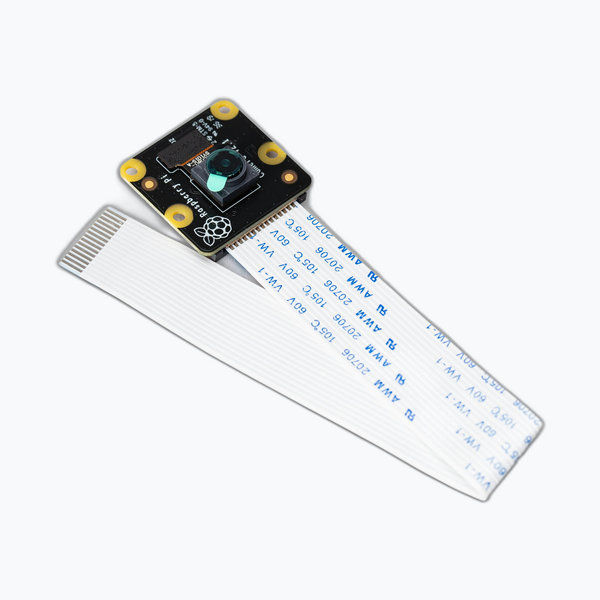

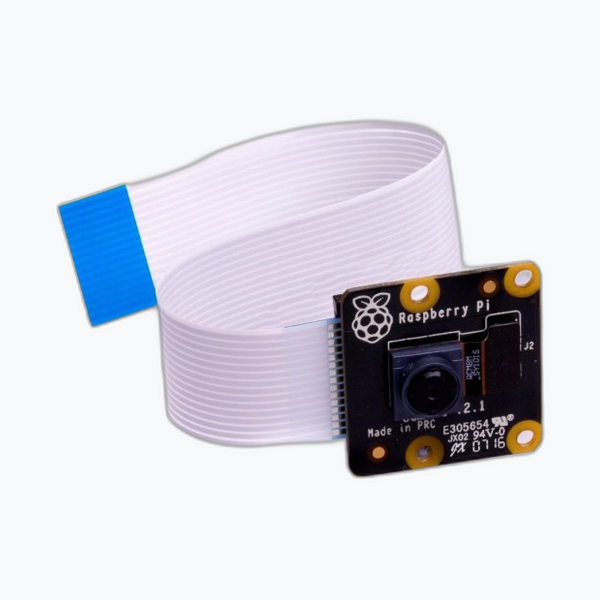

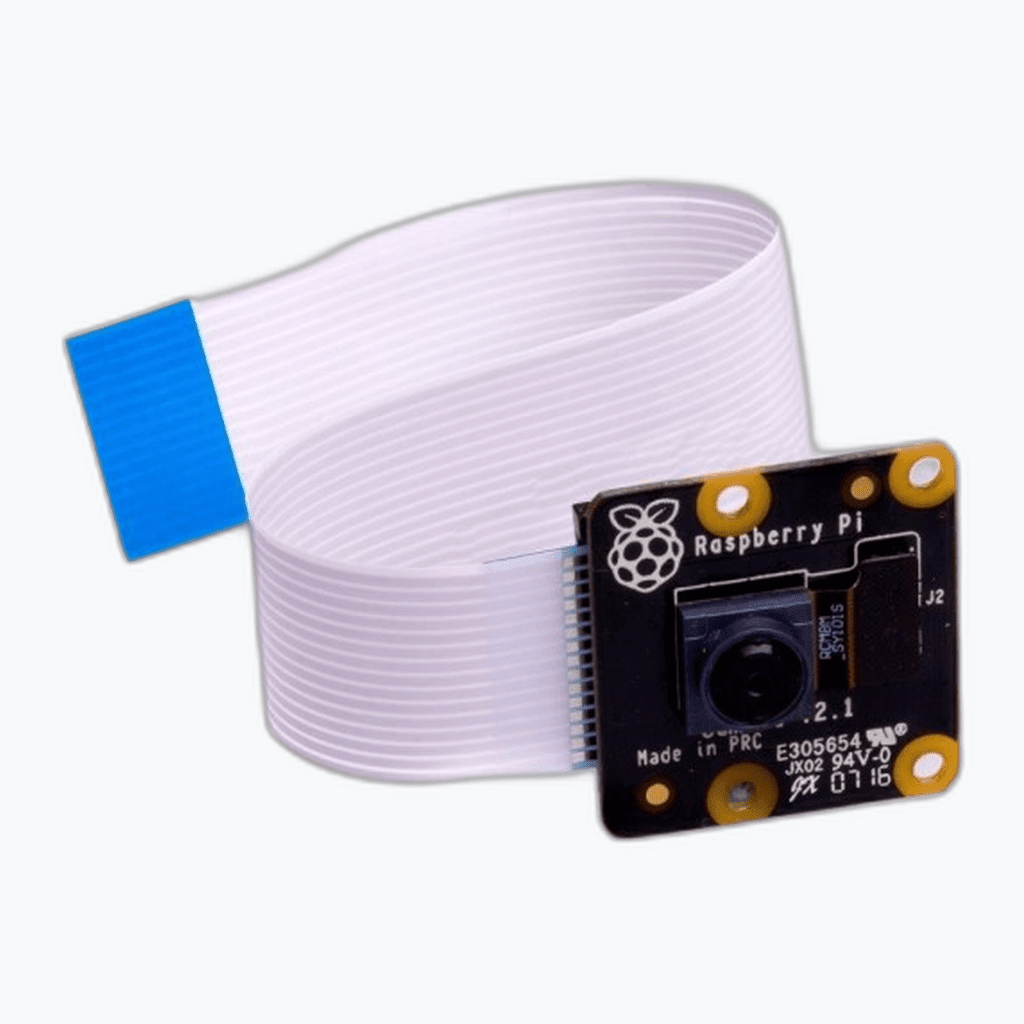

The Official Raspberry Pi Camera NoIR V2 is an 8-megapixel high-definition camera module designed exclusively for Raspberry Pi single-board computers. Unlike the standard Camera Module V2, the NoIR variant has the infrared (IR) cut-off filter removed, making it highly sensitive to IR light for exceptional low-light and night-vision imaging.
Powered by the Sony IMX219PQ 8-megapixel image sensor, the Camera NoIR V2 captures still images at 3280 x 2464 resolution and records smooth video at 1080p30, 720p60, and 640x480p90. It connects to any Raspberry Pi board with a CSI connector via the included 15-pin ribbon cable.
At EdgeupLabs, every Camera Module NoIR V2 is 100% authentic Raspberry Pi Foundation stock, backed by B2B GST invoicing and dedicated engineer-to-engineer support for the Indian deep-tech ecosystem.
- NoIR (No Infrared Filter): Removed IR cut-off filter enables night-vision imaging when paired with IR LEDs — ideal for wildlife monitoring, surveillance, and low-light photography.
- 8-Megapixel Sony Sensor: The Sony IMX219PQ sensor delivers 3280 x 2464 pixel still images with high sensitivity, low crosstalk, and excellent noise performance.
- Full HD Video: Supports 1080p30, 720p60, and 640x480p90 video recording with smooth, artefact-free output.
- Plug-and-Play Compatibility: Works with all Raspberry Pi models featuring a CSI connector — Pi 5, Pi 4, Pi 3, Pi 2, Pi 1, Zero (with separate cable), and Compute Modules.
- Software Support: Fully supported by libcamera and Picamera2 Python libraries; compatible with Raspbian / Raspberry Pi OS.
- Compact Form Factor: Measuring just 25 x 23 x 9 mm and weighing ~3g, it fits easily into portable, embedded, and space-constrained projects.
- Plant Health Monitoring: Bundled blue gel filter allows the NoIR camera to monitor plant health by capturing NDVI-style imagery.
| Image Sensor | Sony IMX219PQ CMOS — 8 Megapixel (1/4-inch optical format) |
|---|---|
| Still Resolution | 3280 x 2464 (8 MP native) |
| Video Modes | 1080p30 / 720p60 / 640x480p60 & 640x480p90 |
| IR Filter | Removed (NoIR) — enables IR night vision with external IR LEDs |
| Lens | Fixed focus |
| Connector | 15-pin MIPI CSI-2 (ribbon cable included) |
| Pixel Technology | 1.4 µm x 1.4 µm with OmniBSI technology (high sensitivity, low crosstalk, low noise) |
| Dimensions | 25 mm x 23 mm x 9 mm |
| Weight | ~3 g |
| Cable Length | 150 mm ribbon cable (included) |
| Compatibility | All Raspberry Pi boards with CSI connector (except Pi 400/500/2016 Zero) |
| Production Lifespan | In production until at least January 2028 |

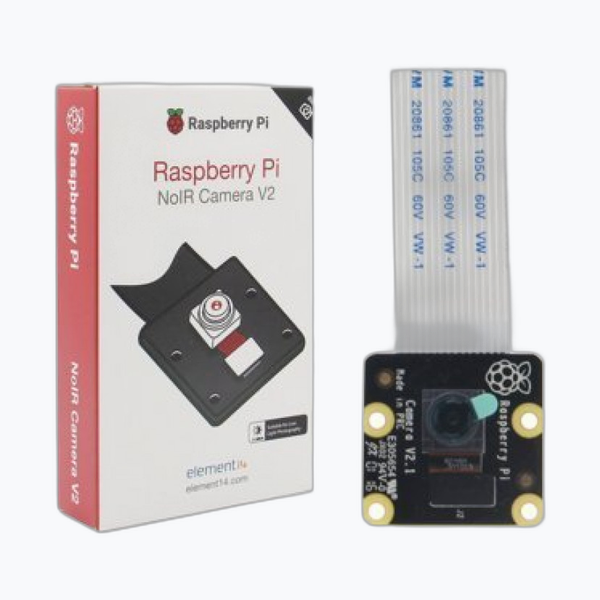

Your purchase includes the following authentic items:
- 1 x Official Raspberry Pi Camera NoIR V2 Module
- 1 x 15-pin CSI ribbon cable (150 mm)
- 1 x Blue gel filter (for plant health monitoring)
Note: The included cable is NOT compatible with Raspberry Pi Zero models. A separate Zero-compatible camera cable is required for Pi Zero / Zero 2 W.
